CARTESIAN AUTOMATIC PALLETISER

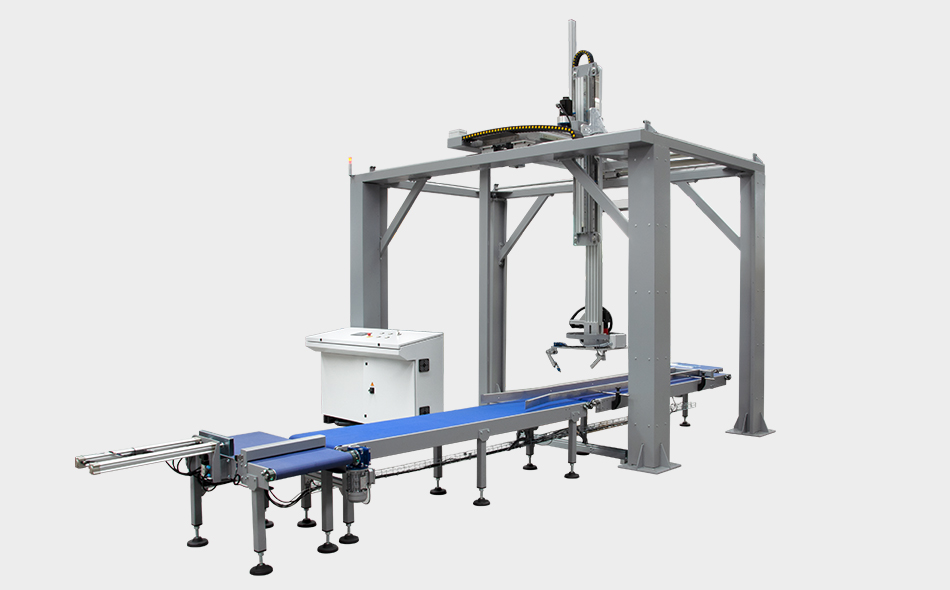

The TRON CARTESIANO automatic Cartesian palletizer by DM Pack is part of the DM Pack range of Cartesian palletisers, developed to meet different end-of-line requirements in terms of operating speed, reduced footprint and final pallet configuration. The machine is built on a robust supporting structure, designed to guarantee high accessibility on all sides and maximum operational safety. The integration of photoelectric barriers allows the operator to intervene safely when necessary, ensuring work continuity and compliance with industrial standards. The pick & place gripping head, configurable according to the type of product to be palletised, is custom-designed to guarantee gentle handling, precise positioning and correct load alignment before final placement on the pallet. The compact design, optimised footprint, high movement precision and ease of use are the distinctive features of the TRON CARTESIANO palletiser, making it an ideal solution for packaging lines requiring flexibility, advanced integration and efficiency in automatic end-of-line systems.
General characteristics
The TRON CARTESIANO automatic palletiser by DM Pack is available in single-bay or multi-bay configuration. It is a new-generation model, designed to offer an optimised footprint, ease of use and high cost efficiency, making it ideal for automatic end-of-line applications.
The machine is built on a robust supporting structure, integrating recirculating ball guides on which the Cartesian axis system moves. This system consists of an arm equipped with a gripping head for easy and precise product picking. The system operates along the X, Y and Z Cartesian axes and is driven by brushless or asynchronous motors with inverter, selected according to the operating speeds and precision levels required.
Following the set programme, the Cartesian axis system moves to the picking point, lifts the product and places it on the pallet using a configurable gripping head, equipped with a vacuum system, suction cups or grippers, according to the type and weight of the load.
The palletiser can be configured in the “floor-level pallet” version, where the empty pallet is manually positioned by the operator using a pallet truck inside a floor-mounted template. The completed pallet is removed in the same way, ensuring simple, safe and flexible management of the palletising process.
The machine is built on a robust supporting structure, integrating recirculating ball guides on which the Cartesian axis system moves. This system consists of an arm equipped with a gripping head for easy and precise product picking. The system operates along the X, Y and Z Cartesian axes and is driven by brushless or asynchronous motors with inverter, selected according to the operating speeds and precision levels required.
Following the set programme, the Cartesian axis system moves to the picking point, lifts the product and places it on the pallet using a configurable gripping head, equipped with a vacuum system, suction cups or grippers, according to the type and weight of the load.
The palletiser can be configured in the “floor-level pallet” version, where the empty pallet is manually positioned by the operator using a pallet truck inside a floor-mounted template. The completed pallet is removed in the same way, ensuring simple, safe and flexible management of the palletising process.
Specific characteristics
The TRON CARTESIANO automatic palletizer by DM Pack has a reduced footprint, with minimum dimensions of 2200 mm in length and 1350 mm in width. Depending on the pallet format used, the overall height can reach up to 2700 mm, including the pallet.
The machine can work with all types of pallets and supports 800 × 1200 mm and 1000 × 1200 mm formats. The maximum palletising height can reach up to 1750 mm with pallet, while the total height reaches 2700 mm, with special configurations available up to 3000 mm to meet specific application requirements. The operating speed can reach up to 10 movements per minute, guaranteeing an optimal balance between productivity and precision.
The gripping head can be configured with suction cups, grippers or vacuum systems, according to the type, weight and characteristics of the product to be palletised. Workable product dimensions range from a minimum of 90 × 150 × 100 mm up to a maximum of 400 × 600 × 600 mm, offering high application flexibility.
In the four-side open version, the TRON palletizer can be equipped with numerous optional systems, including additional bays, interlayer sheet magazine, pallet magazine, roller conveyors for automatic loading and unloading of empty and full pallets, pallet wrappers and depalletising systems, allowing high end-of-line integration and automation.
Several options are available for the 4 sides open version of the TRON palletiser, including an additional bay, an interlay storage area, a pallet pick-up storage area, roller conveyors to automatically load and unload the empty and full pallet, pallet wrappers and depalletising systems.
The machine can work with all types of pallets and supports 800 × 1200 mm and 1000 × 1200 mm formats. The maximum palletising height can reach up to 1750 mm with pallet, while the total height reaches 2700 mm, with special configurations available up to 3000 mm to meet specific application requirements. The operating speed can reach up to 10 movements per minute, guaranteeing an optimal balance between productivity and precision.
The gripping head can be configured with suction cups, grippers or vacuum systems, according to the type, weight and characteristics of the product to be palletised. Workable product dimensions range from a minimum of 90 × 150 × 100 mm up to a maximum of 400 × 600 × 600 mm, offering high application flexibility.
In the four-side open version, the TRON palletizer can be equipped with numerous optional systems, including additional bays, interlayer sheet magazine, pallet magazine, roller conveyors for automatic loading and unloading of empty and full pallets, pallet wrappers and depalletising systems, allowing high end-of-line integration and automation.
Several options are available for the 4 sides open version of the TRON palletiser, including an additional bay, an interlay storage area, a pallet pick-up storage area, roller conveyors to automatically load and unload the empty and full pallet, pallet wrappers and depalletising systems.
Packaged product examples
Tron Cartesiano - Pallettizzatore automatico cartesiano a portale
Tron Cartesiano - Pallettizzatore automatico cartesiano a portale
Tron Cartesiano - Pallettizzatore automatico cartesiano a portale
Tron Cartesiano - Pallettizzatore automatico cartesiano a portale
Tron Cartesiano - Pallettizzatore automatico cartesiano a portale
and many others...
Details gantry automatic cartesian palletizer
PALLETISER conveyor belt equipped with optical sensors for box reading. In this station, the products are precisely presented in the picking station
Various types of picking modules (possibility of quick coupling and release in automatic mode).
The version with 4 sides open enables an increased number of bays, also with the interlayers storage or pallet storage empty.
Use of the brushless motor allows high precision in pack positioning
Possibility of integrating the Cartesian palletiser with external or internal pallet wrapping systems, according to space and client needs.
Empty or full loading and unloading roller systems, depalletisation systems are also available.
