COMPACT CARTESIAN PALLETISER
The TRON COMPATTO automatic Cartesian palletizer by DM Pack is designed to meet different end-of-line requirements in terms of speed, reduced footprint and final pallet configuration. The machine is developed to offer customised palletising solutions, adaptable to specific production requirements. The TRON COMPATTO is designed and built on a robust supporting structure, ensuring stability, reliability and wide accessibility to the operating areas. Operator safety is ensured by the integration of photoelectric barriers, compliant with industrial standards. The gripping head, configurable according to the type of product to be palletised, is custom-designed to guarantee gentle handling, precise positioning and correct load alignment before final placement on the pallet. The compact design, reduced footprint, high movement precision and ease of use make the TRON COMPATTO Cartesian palletiser an ideal solution for packaging lines requiring efficiency, reliability and space optimisation in automatic end-of-line systems. All DM Pack Cartesian palletisers are equipped with the most advanced remote connectivity systems, enabling fast and effective technical assistance from specialised technicians. In addition, each machine is manufactured with ISO-certified components, guaranteeing reliability, safety and long-term durability.
General characteristics
The DM Pack compact automatic Cartesian palletiser is available in a single-bay configuration, designed to guarantee an extremely reduced footprint and a cost-effective solution for automatic end-of-line systems.
The machine is built on a robust supporting structure, integrating recirculating ball guides on which the Cartesian axis system moves. This system consists of an arm equipped with a gripping head for agile and precise product picking. The system operates along the X, Y and Z Cartesian axes and is driven by brushless or asynchronous motors with inverter, selected according to the operating speeds and precision levels required by the application.
The palletizer can be configured in the “floor-level pallet” version, where the empty pallet is manually positioned by the operator using a pallet truck, while the completed pallet is removed in the same way. This configuration enables simple and effective process management, while maintaining maximum operational flexibility in production environments with limited space.
The machine is built on a robust supporting structure, integrating recirculating ball guides on which the Cartesian axis system moves. This system consists of an arm equipped with a gripping head for agile and precise product picking. The system operates along the X, Y and Z Cartesian axes and is driven by brushless or asynchronous motors with inverter, selected according to the operating speeds and precision levels required by the application.
The palletizer can be configured in the “floor-level pallet” version, where the empty pallet is manually positioned by the operator using a pallet truck, while the completed pallet is removed in the same way. This configuration enables simple and effective process management, while maintaining maximum operational flexibility in production environments with limited space.
Specific characteristics
The TRON COMPATTO compact automatic Cartesian palletizer by DM Pack features reduced dimensions, with a minimum footprint of 2200 mm in length and 1350 mm in width. Depending on the pallet format used, the overall height can reach up to 2700 mm, including the pallet.
The machine is designed to work with 800 × 1200 mm and 1000 × 1200 mm pallets, handling load heights of up to 1750 mm with pallet and up to 2700 mm overall, guaranteeing flexibility in palletising configurations. The operating speed can reach up to 10 movements per minute, ensuring a good balance between productivity and precision.
The gripping head can be configured with suction cups or vacuum systems, according to the type and weight of the product to be palletised. Workable product dimensions range from a minimum of 90 × 150 × 100 mm up to a maximum of 400 × 600 × 600 mm, making the palletiser suitable for a wide range of industrial applications.
The machine is designed to work with 800 × 1200 mm and 1000 × 1200 mm pallets, handling load heights of up to 1750 mm with pallet and up to 2700 mm overall, guaranteeing flexibility in palletising configurations. The operating speed can reach up to 10 movements per minute, ensuring a good balance between productivity and precision.
The gripping head can be configured with suction cups or vacuum systems, according to the type and weight of the product to be palletised. Workable product dimensions range from a minimum of 90 × 150 × 100 mm up to a maximum of 400 × 600 × 600 mm, making the palletiser suitable for a wide range of industrial applications.
Packaged product examples
Tron Compact - Pallettizzatore automatico cartesiano compatto
Tron Compact - Pallettizzatore automatico cartesiano compatto
Tron Compact - Pallettizzatore automatico cartesiano compatto
Tron Compact - Pallettizzatore automatico cartesiano compatto
Tron Compact - Pallettizzatore automatico cartesiano compatto
and many others...
Details compact automatic cartesian palletizer

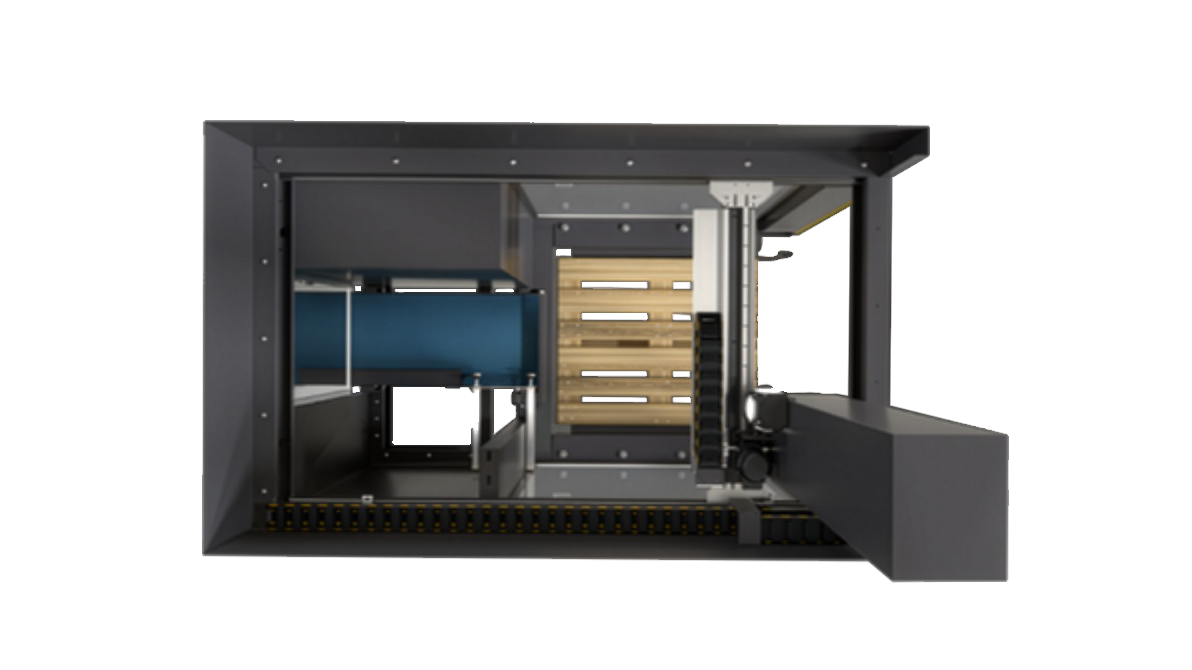

The compact design allows the machine to be installed even in environments with limited space.

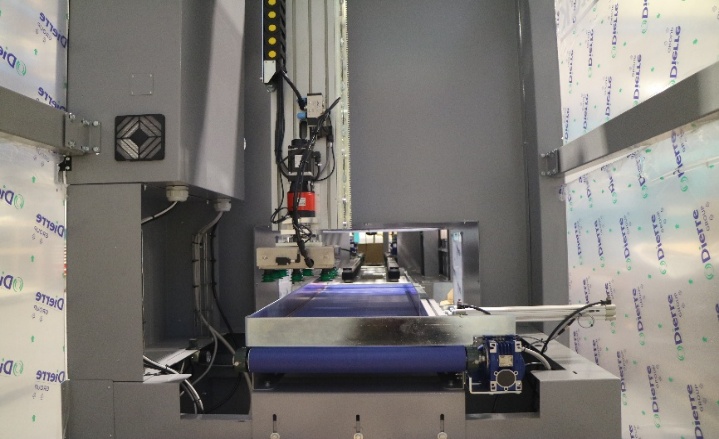

The gripper head can be configured with suction cups or vacuum gripping systems.

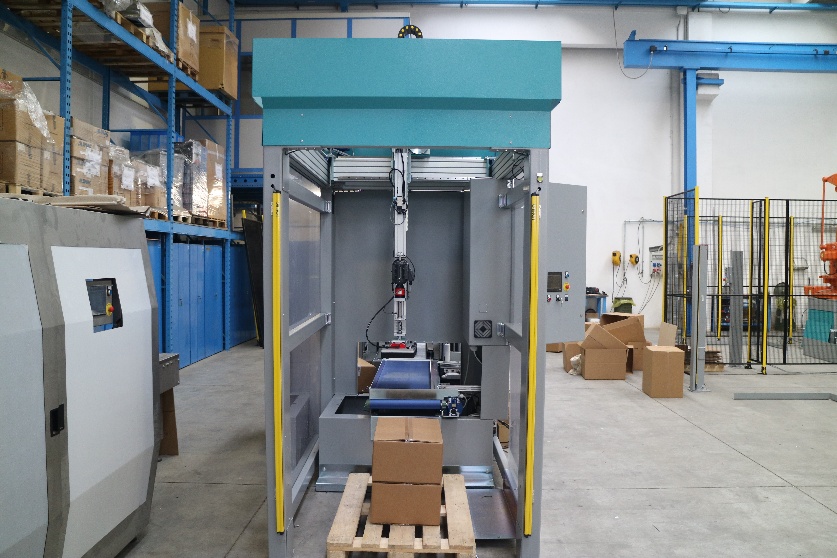

The simple floor-level pallet handling system allows the operator to intervene only when necessary.
