Automatic vertical case packing machine with top loading

Dom

Vertical cartoning machines with top filling

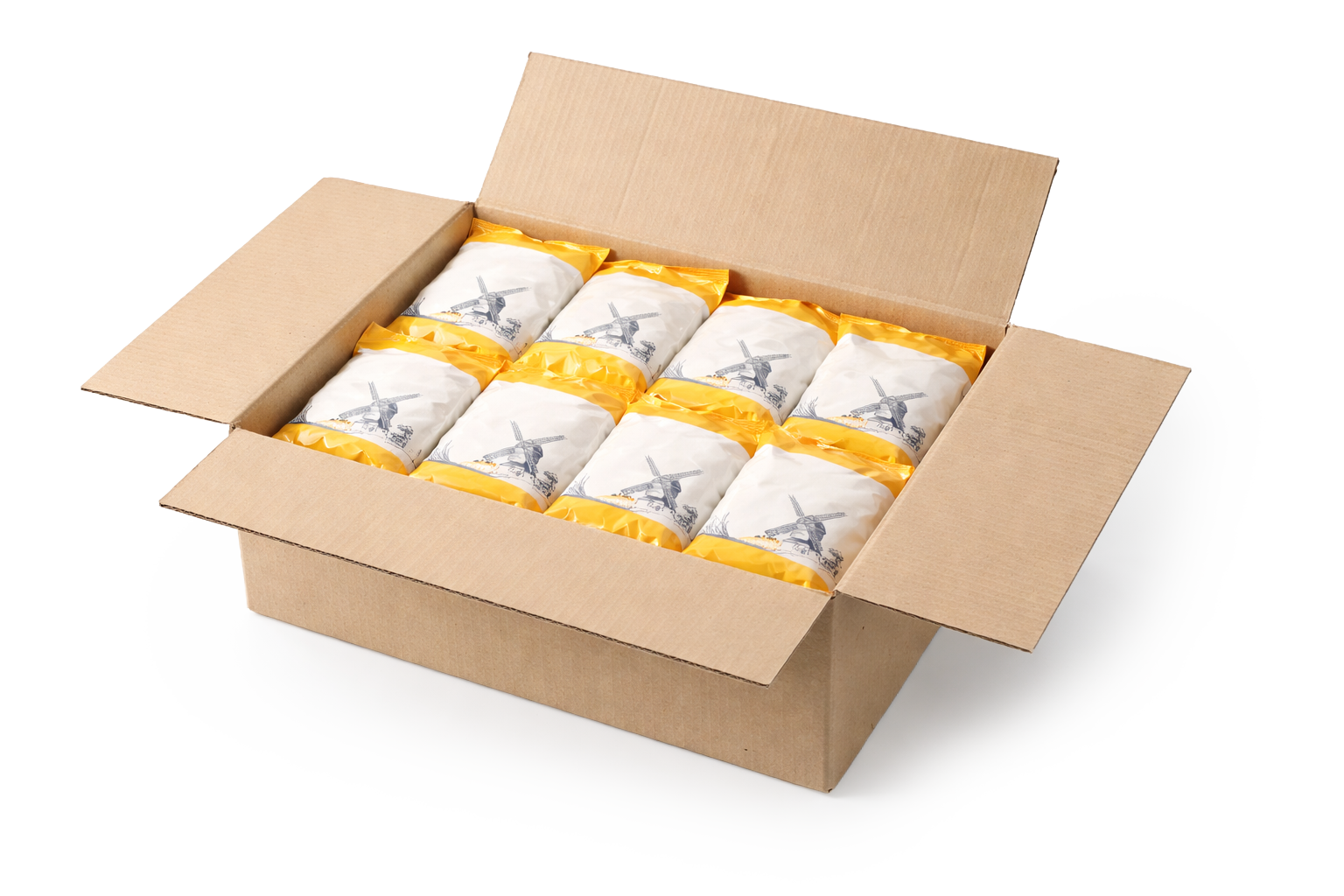

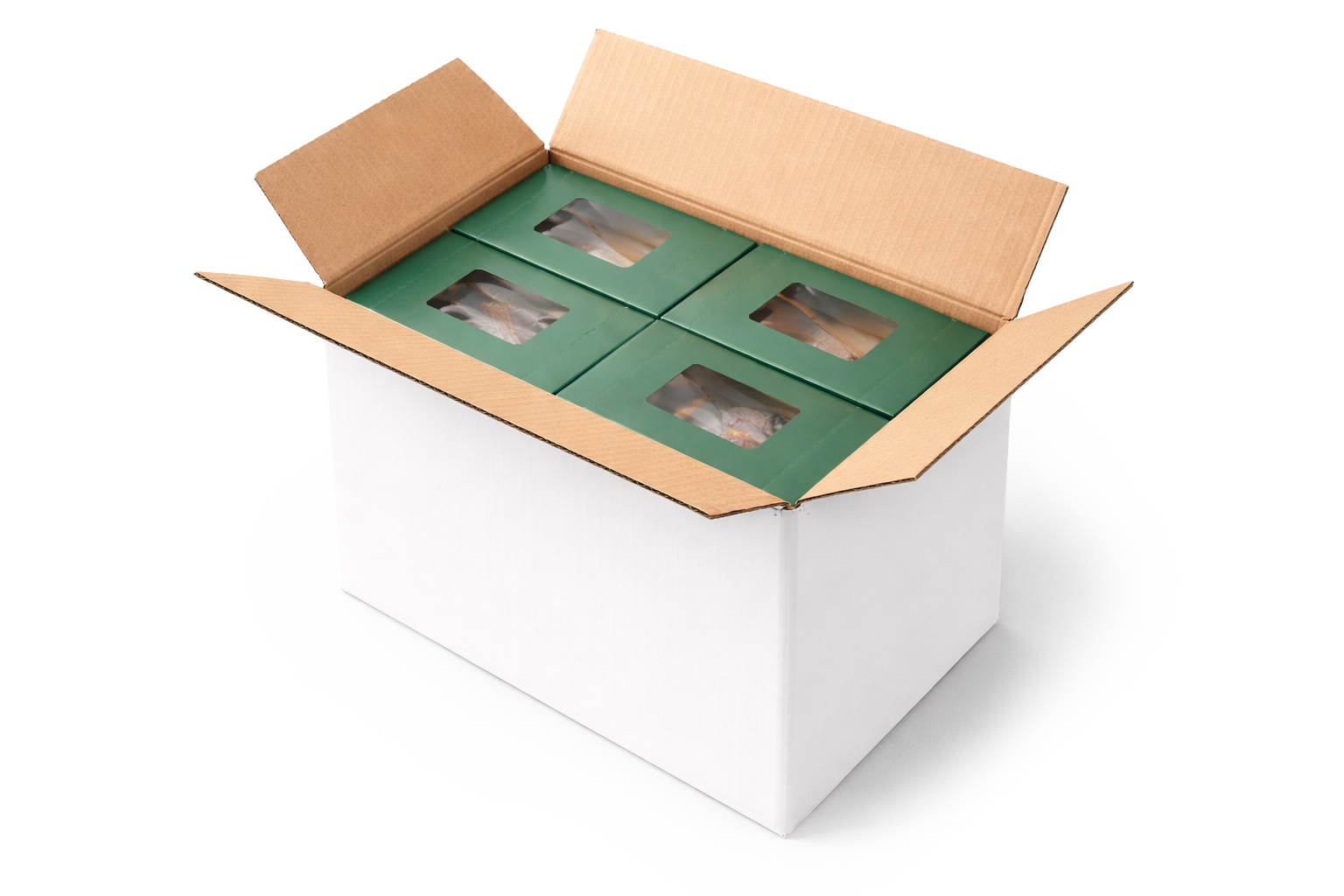

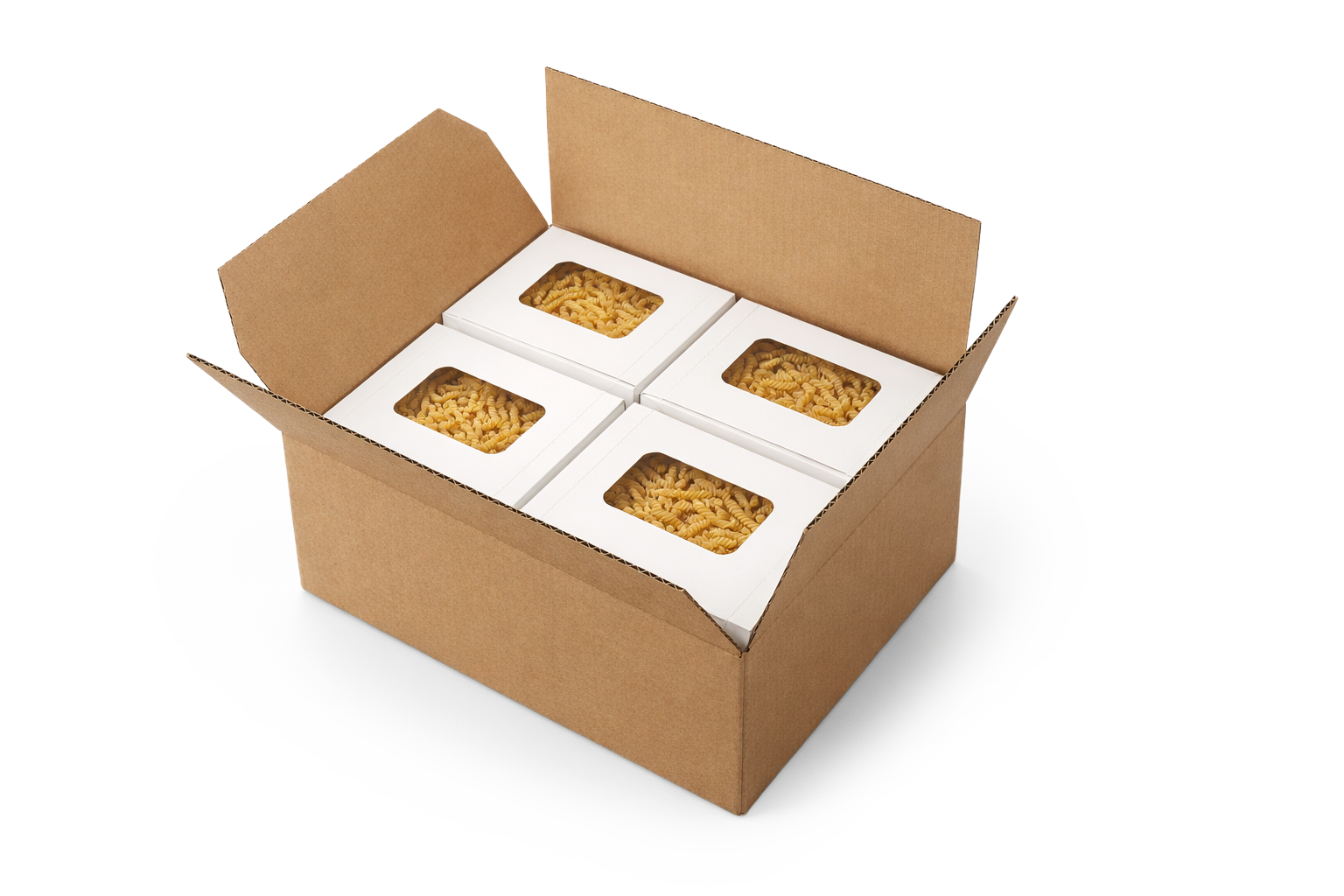

DOM automatic vertical case packers with top loading by DM PACK are advanced solutions for packaging single products or multipacks in pre-glued RSC or HSC cases. The DOM case packing machine automatically manages the case opening, filling and closing phases, guaranteeing a precise, efficient and reliable packaging process. Adjustments can be motorised and automatic, simplifying format changeovers, reducing setup times and improving line productivity. The vertical top-loading system uses an accurate pick & place system, which erects the cases and places the products with extreme precision inside boxes of different sizes. Depending on the type of product, the system can pick and insert multiple products at the same time, optimising work cycles. The case flaps are closed at the top and bottom with adhesive tape, while robotic pick & place systems and hot-melt glue closure can be integrated as additional options. The case is picked from a large magazine that is easily accessible to the operator, erected and transported by motorised conveyors towards the filling area. The multipack, formed by the grouping systems, is then automatically inserted into the open case. The DOM vertical case packer represents a flexible and high-performance solution for optimising the packaging process and increasing the overall efficiency of the production system.

General characteristics

The DOM case packing machine is an automatic and flexible solution for case packing, designed for installation downstream of packaging lines or as an independent unit, according to production requirements.

The pick & place system ensures fast and precise picking of products arriving from the loading conveyor, guaranteeing accurate case filling. The machine can handle different types of product and create variable configurations inside the case, offering high application flexibility for different formats and packaging layouts.

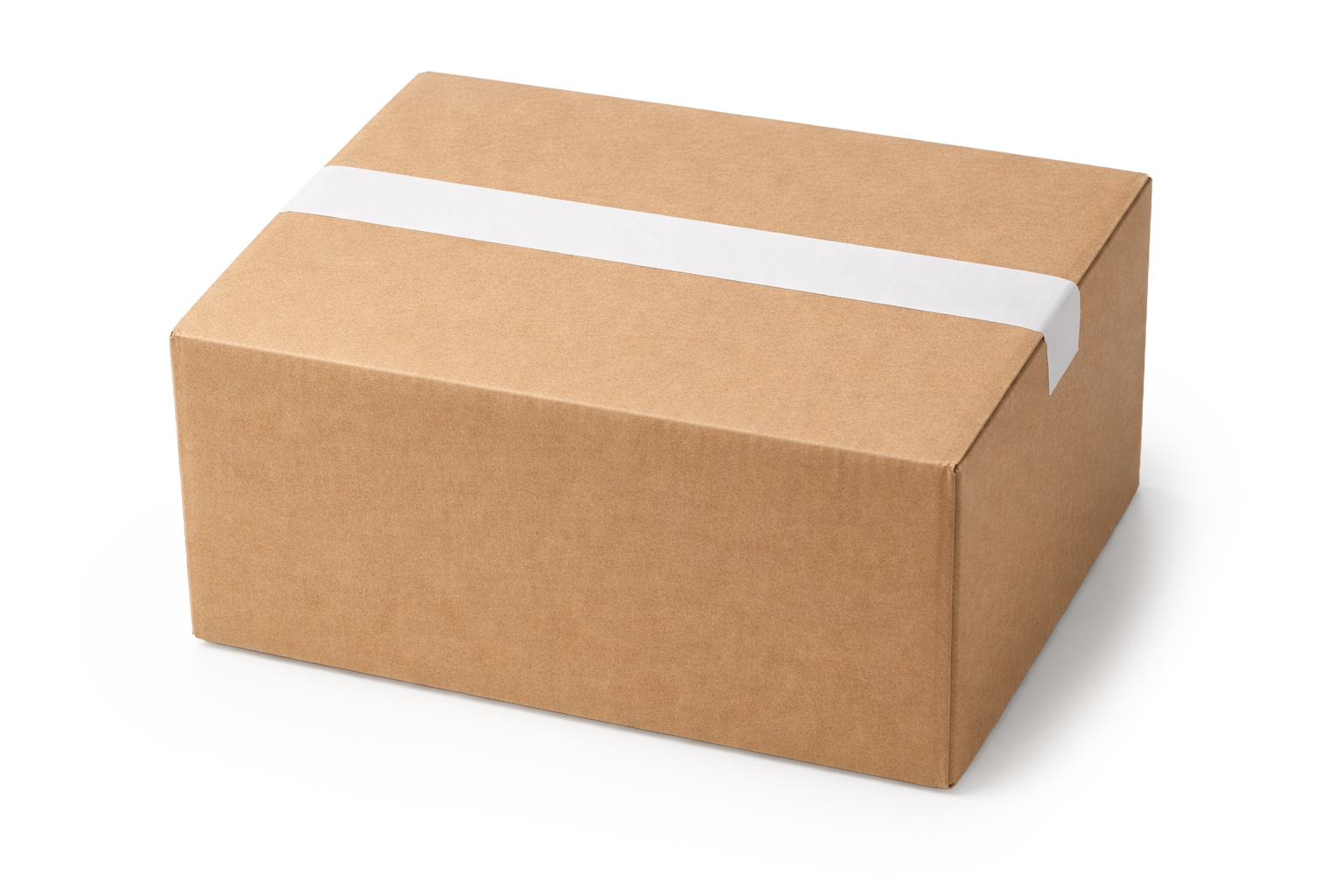

The DOM case packer features a compact structure with modular stations, designed to guarantee robustness, reliability and maximum accessibility during operation and maintenance. Once filling is complete, the cases are conveyed towards the outfeed, where the machine closes the flaps and seals them with adhesive tape. Alternatively, hot-melt glue closure is available as an option, to meet specific process requirements and sealing strength needs.

Specific characteristics

DOM vertical case packers with top loading are designed to handle a wide range of case sizes, offering flexibility and adaptability to different industrial packaging requirements. The standard workable case dimensions range from a minimum of 150 × 150 × 150 mm up to a maximum of 400 × 600 × 400 mm, referring to cases with closed flaps.

The DOM case packing machine can be configured with motorised and automatic adjustments, designed to simplify set-up operations and make format changeover quick, intuitive and repeatable. The adjustable parts are easily accessible, improving ergonomics and reducing intervention times.

The mechanical movements are guided by dovetail guides and recirculating ball slides, solutions that ensure precision, stability and long-term reliability. The case packing process is managed by an Omron or Siemens PLC, equipped with a user-friendly interface that enables simple and effective control of all machine functions.
